Pavan Kapoor: Mechanical Engineering Portfolio
About Me
Mechanical Engineering Junior at The Cooper Union for the Advancement of Science and Art. Expected Graduation 2026


System Assembly
Nosecone
Nosecone Mold Manufacturing




Infusion Layup Setup


Resin Infusion


Post-Processing



Post Vinyl

Anti-Intrusion Plate and Impact Attenuator
AIP Welding



Impact Attenuator Adhesion

Firewall
I designed and manufactured a ballistically protective, electrically, and thermally insulative firewall for an electric racecar.
Materials
The Firewall is made of a sandwich panel of 6 layers of 200 gsm bidirectional basalt fiber with a sheet of Nomex Honeycomb in the middle. It also has a layer of 0.64mm thick 6061 Aluminum facing the tractive system. I used Basalt because it had the highest resistivity and acceptable tensile strength. The Nomex Honeycomb adds thickness which makes the firewall stiffer in bending since the high tensile strength Basalt is further from the neutral axis. It also adds a airgap which increases thermal and electrical insulation.


Design
I designed the firewall based on space constraints in the chassis and manufacturability. There are no complex curves in the design since the aluminum must be bent to the desired shape first. The Aluminum backing facing the driver is connected to low-voltage ground through the mounting tabs. This protects the driver from any high-voltage malfunctions.
The Firewall mounts with quarter turn fastners. This is to improve serviceiblity of low voltage components behind the firewall.



Lower Firewall Manufacturing
I manufactured the firewall with a vacuum layup. I used a sheet metal bender to cut and bend the aluminum.

Foam mold with bent aluminum





Upper firewall Manufacturing


Nomex Coring

Layup

Post Processed and mounted
Harness tabs
Design
Harness tab was designed to be able withstand 15,000N of tearout load per tab based on rules from FSAE.
The tabs were designed to be manufactured from rectangular steel tubing so that the bolts were in double shear while being easy and efficient to manufacture since there it was milled out of correctly sized tube rather than a solid block of steel. Although 2 tabs cut from 1/8" sheet metal could have been used, it would have been very challenging to weld the inside edge of the tab as required by rules. The hardware is M12 high-strength alloy steel shouldered bolts.
The factor of safety for the harness tab is 2.1.


Manufacturing


Drivetrain & Accumalator Mounting tab
Drivetrain Jig

Drivetrain Tabs Tacked

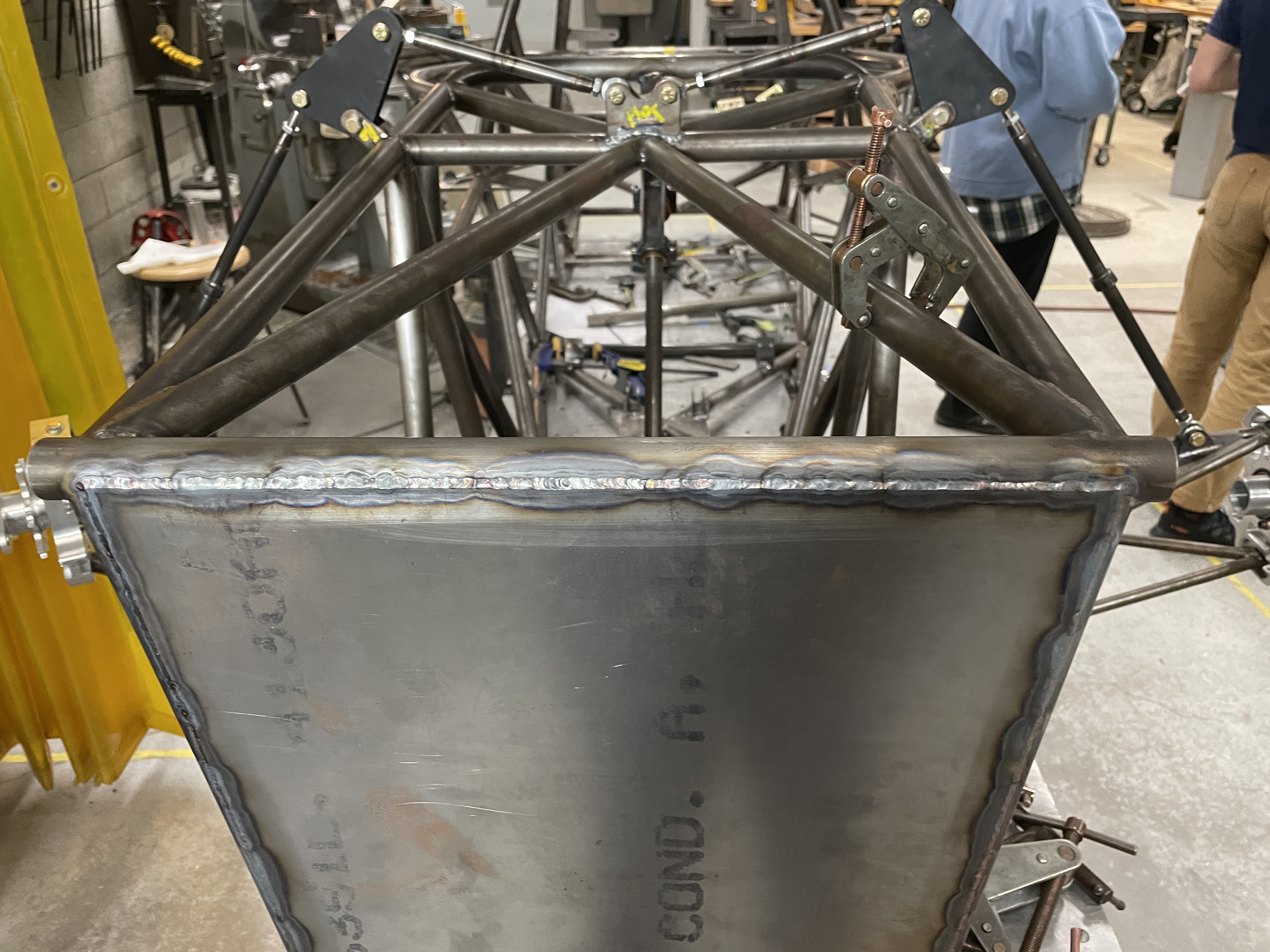

My Friend and I welding the Accumalator Tabs under intense time pressure

CNC Projects

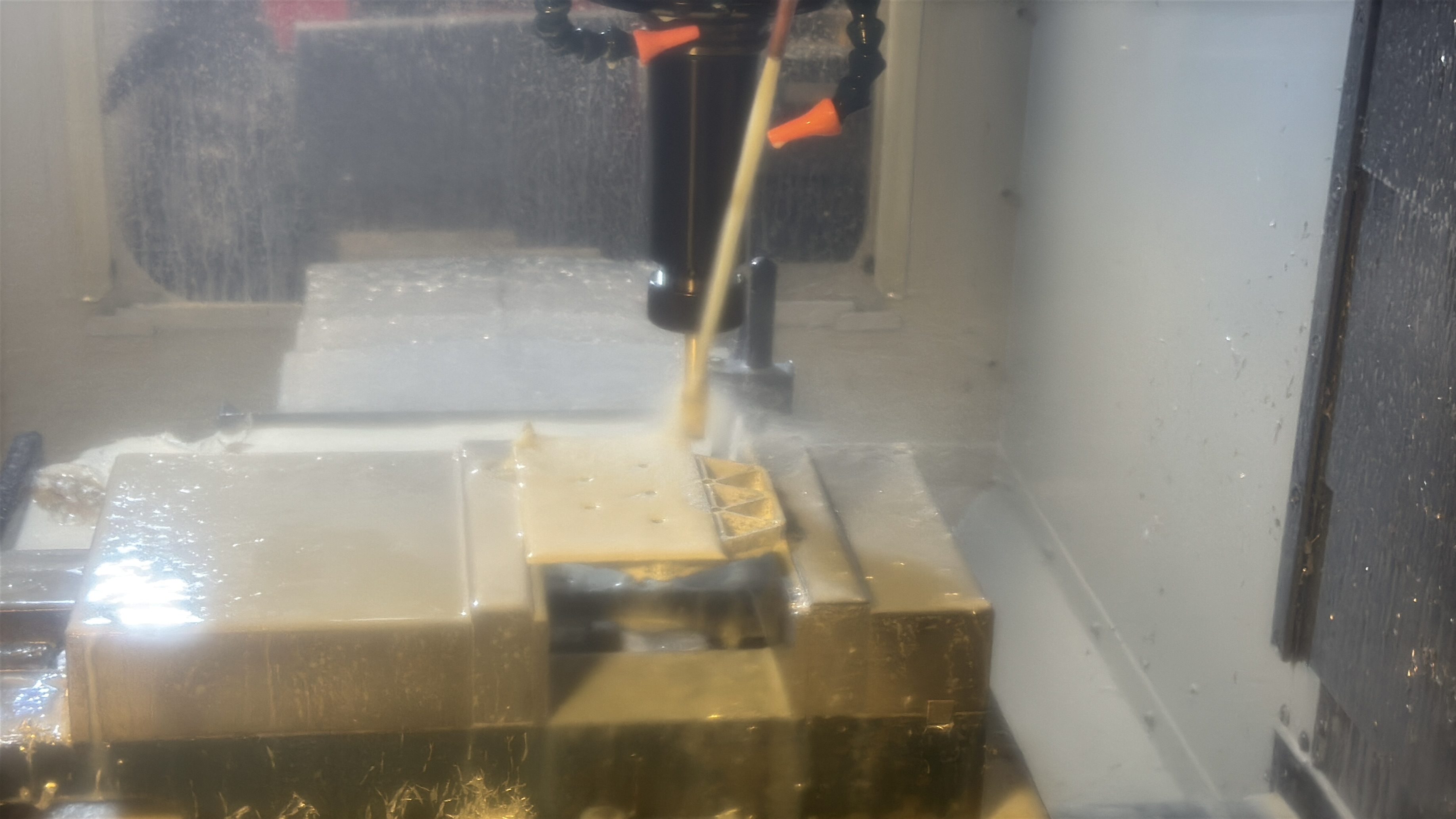

Some CNC projects I CADed in SolidWorks and prograrmed the tool paths in MasterCAM. Purpose of the project was to learn how to use a CNC mill.

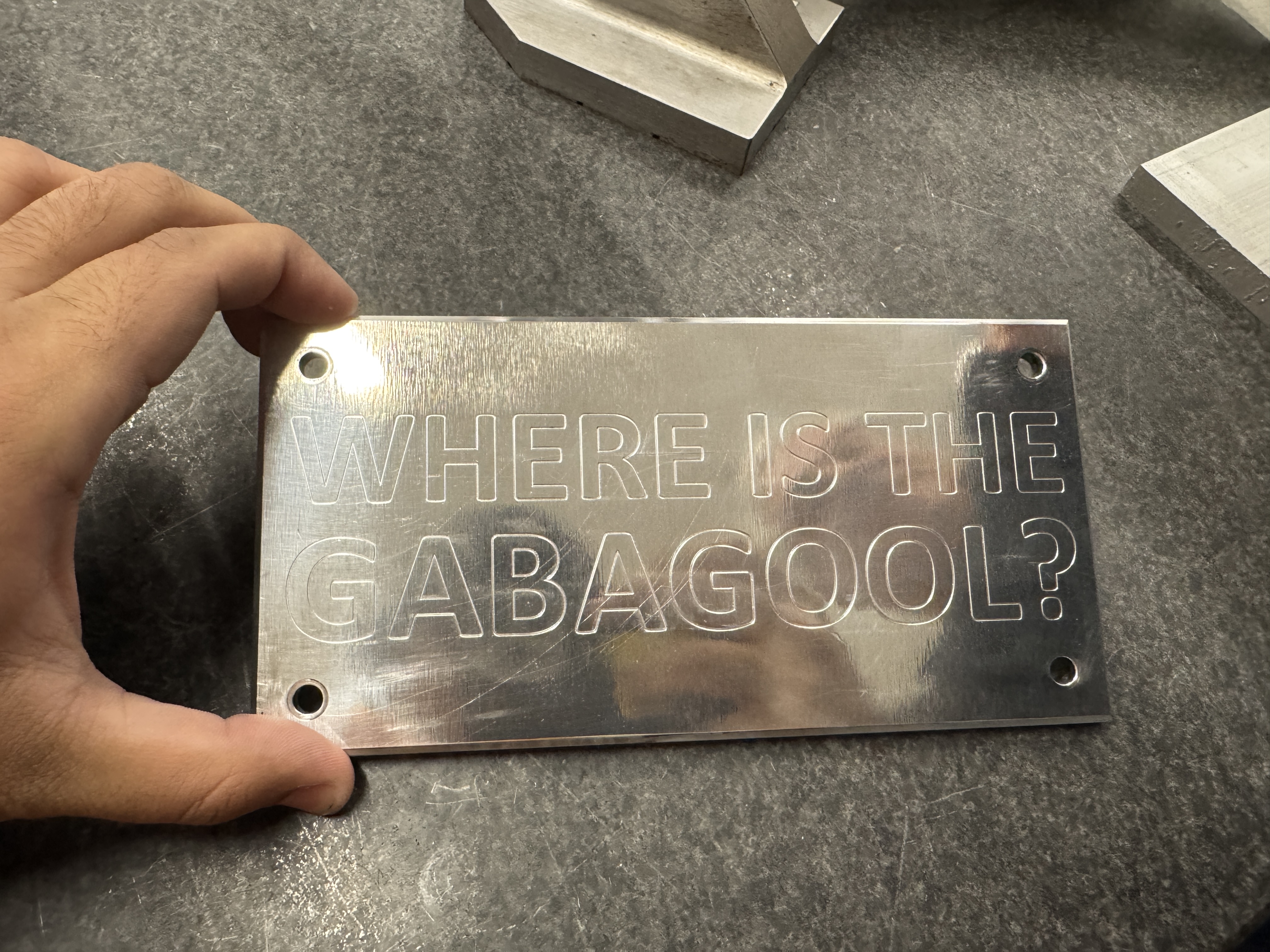

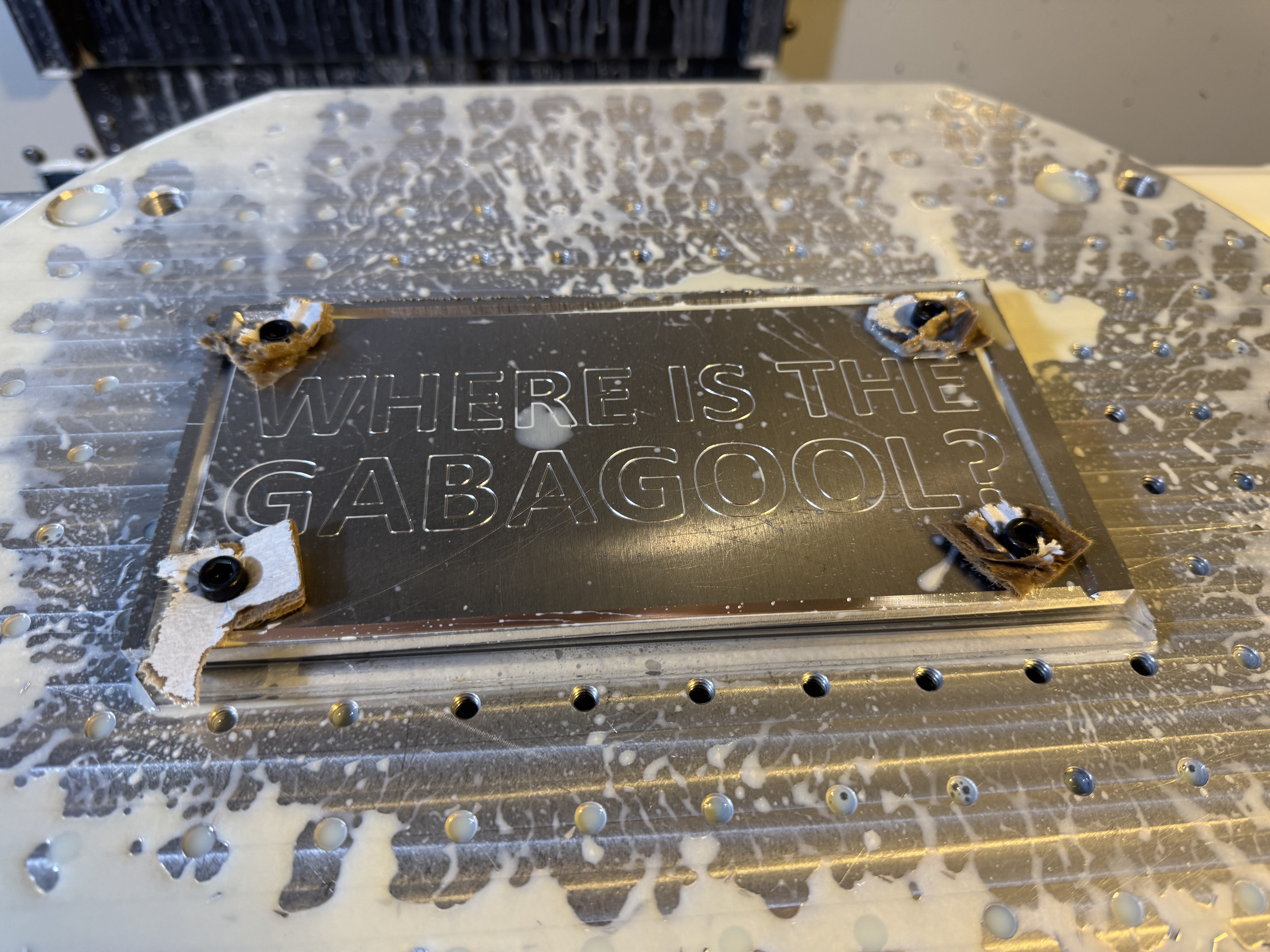

Name Plate Engraving

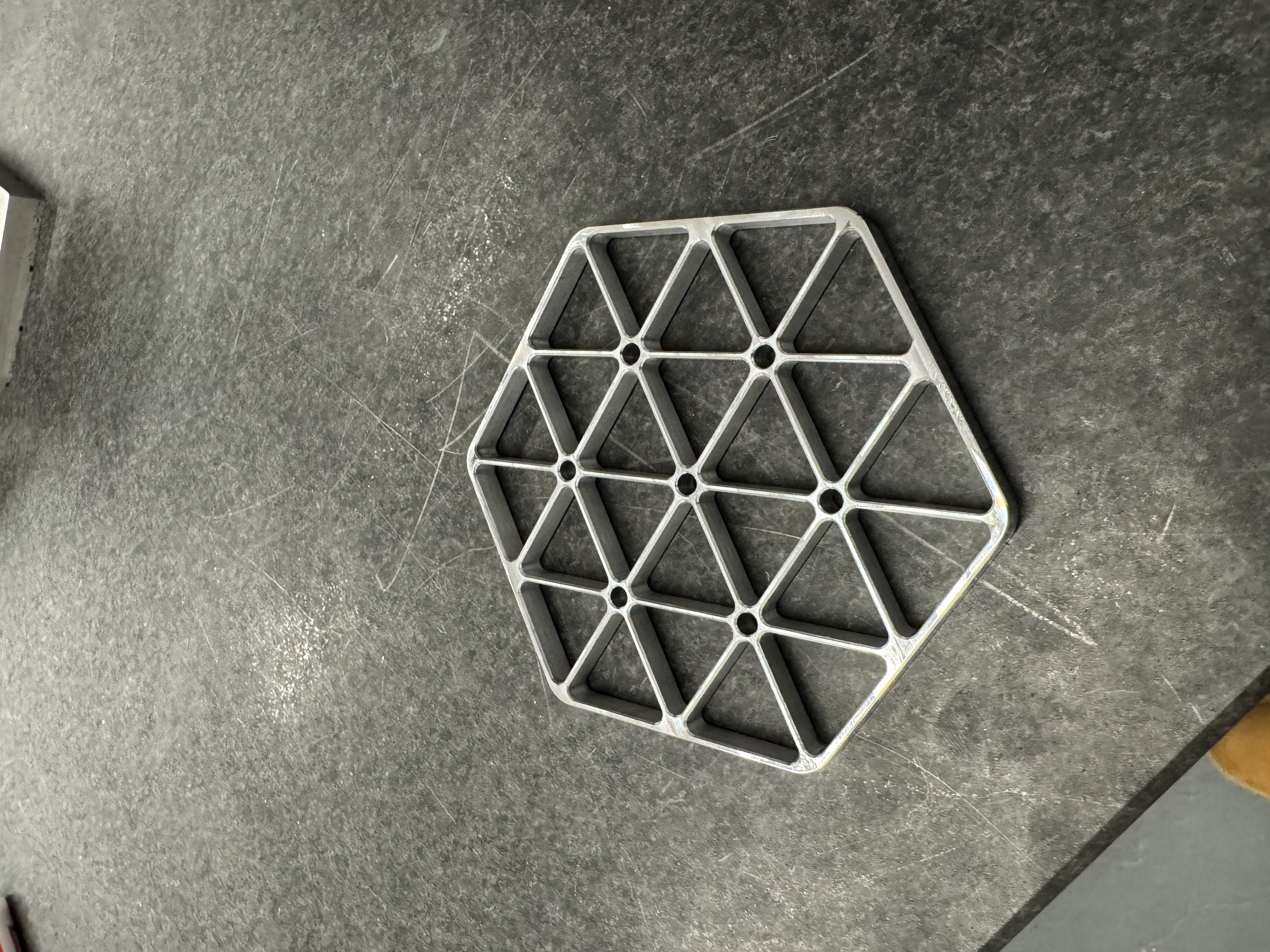

Weight Efficient Coaster
